| > | with(plots);with(plottools); |
![]()
![]()
![]()
| > | surface:=plot3d(9-x^2-2*y^2,x=-3..3,y=-3..3,view=0..12): |
| > | display(surface, pt, Vx, Vy, N, tp); |

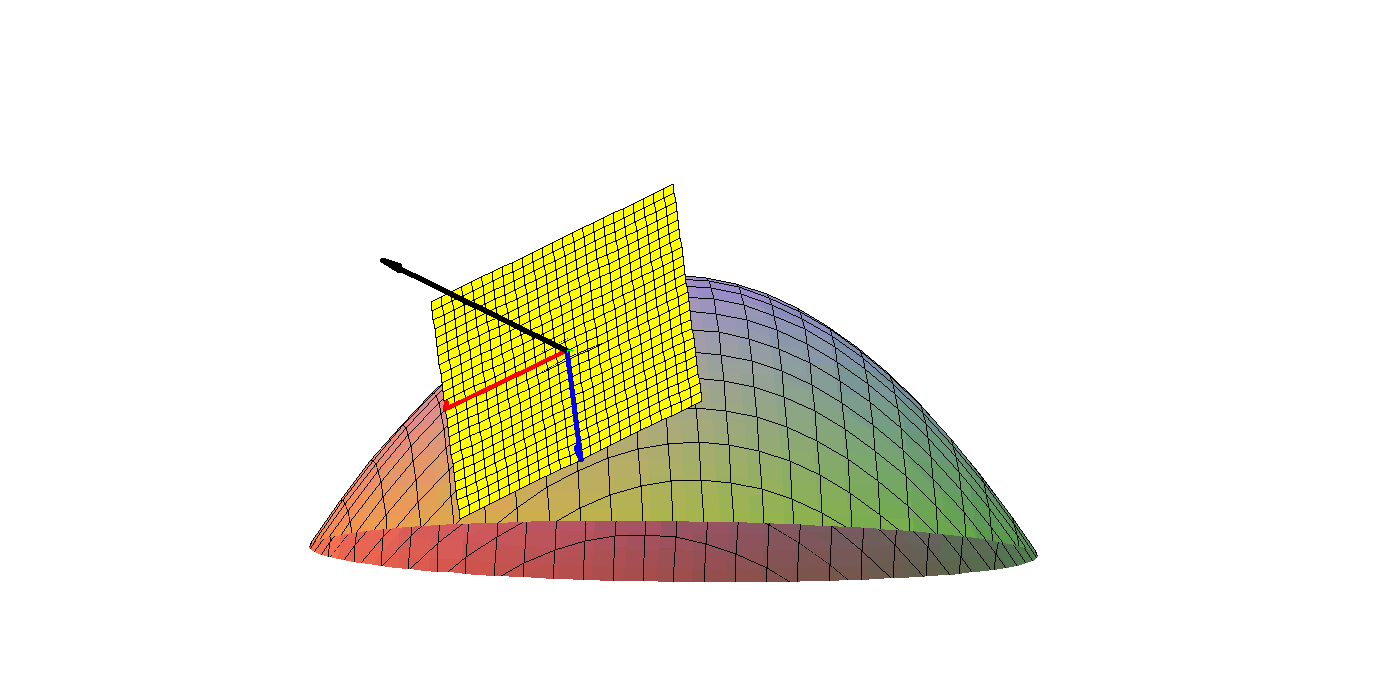

![[Plot]](Images/MATH251_11_4_TangentPlanes_6.gif)
| > | pt:=point([1,1,6], color=green, symbol=CIRCLE): |
| > | Vx:=arrow([1, 1, 6], <1, 0, -2>, .2, .2, .1, arrow,color=red, thickness=3): |
| > | Vy:=arrow([1, 1, 6], <0, 1, -4>, .2, .2, .1, arrow,color=blue, thickness=3): |
| > | N:=arrow([1,1,6],<2,4,1>, .2, .2, .1, arrow,color=black, thickness=3): |
| > | tp:=plot3d(12-2*x-4*y,x=0..2,y=0..2,color=yellow): |
| > |
