9.4.   Example 2:   x' = 2x - 2x^2 + xy, y' = 5y - 3y^2 + xy/2.

>	with(DEtools):with(plots):with(plottools): # Load various packages



>	# First, I mark the three critical points with small blue disks.



>	C1:=disk([0,0],0.05,color=blue):



>	C2:=disk([0,5/3],0.05,color=blue):



>	C3:=disk([1,0],0.05,color=blue):



>	C4:=disk([2,2],0.05,color=blue):



>	# Then I create the solutions for several initial conditions.



>

solutioncurves:=phaseportrait([D(x)(t) = 2*x(t)-2*x(t)^2+x(t)*y(t), D(y)(t)= 5*y(t)-3*y(t)^2+x(t)*y(t)/2],[x(t),y(t)],t=0..3, [[x(0)=3,y(0)=3],[x(0)=2,y(0)=3],[x(0)=1,y(0)=3],[x(0)=0.5,y(0)=3],[x(0)=1,y(0)=0.1],[x(0)=0.5,y(0)=0.1],[x(0)=2,y(0)=0.1],[x(0)=0.1,y(0)=0.1],[x(0)=0.0,y(0)=0.1],[x(0)=3,y(0)=0],[x(0)=3,y(0)=1],[x(0)=3,y(0)=2],[x(0)=0.1,y(0)=3]],x=0..3,y=0..3,linecolor=red,arrows=none,numpoints=100):



>	# Then I create the vector field.



>	vectorfield:=fieldplot([2*x-2*x^2+x*y,5*y-3*y^2+x*y/2],x=0..3,y=0..3,arrows=slim,anchor=tail,fieldstrength=maximal(2),grid=[20,20]):

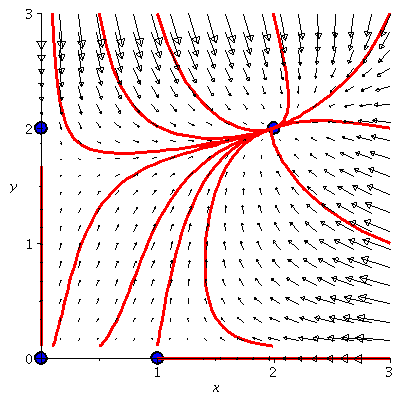

>	# Finally, this is all displayed.



>	display(solutioncurves,vectorfield,C1,C2,C3,C4);
