GraphingComplexPolynomials.mw



Graphing Complex Polynomials

> P1 := z -> z^2 +2*I*z + 1;


proc (z) options operator, arrow; `+`(`*`(`^`(z, 2)), `*`(`*`(2, `*`(I)), `*`(z)), 1) end proc (1)

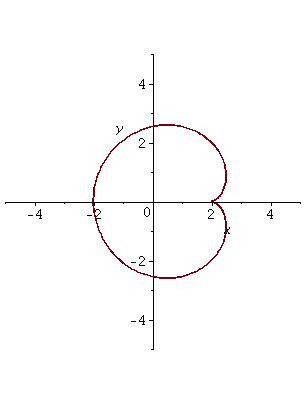

Image of unit circle.

> plot([Re(P1(cos(t)+I*sin(t))),Im(P1(cos(t)+I*sin(t))),t=0..2*Pi],x=-5..5,y=-5..5);


Plot_2d


Question: Is this a true cardioid? I do not think so.

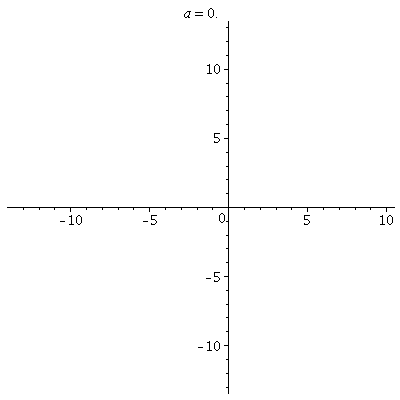

Animation of circles of varying radii.

> animate(plot, [[Re(P1(a*cos(t)+a*I*sin(t))),Im(P1(a*cos(t)+a*I*sin(t))),t=0..2*Pi]], a=0..3);


Plot_2d


> P2:= z -> z^3 + (1+I)*z^2- z +2;


proc (z) options operator, arrow; `+`(`*`(`^`(z, 3)), `*`(`+`(1, I), `*`(`^`(z, 2))), `-`(z), 2) end proc (2)


> animate(plot, [[Re(P2(a*cos(t)+a*I*sin(t))),Im(P2(a*cos(t)+a*I*sin(t))),t=0..2*Pi]], a=0..3);


Plot_2d


> P3:= z-> z^4 +3*z^3 -2*I*z;


proc (z) options operator, arrow; `+`(`*`(`^`(z, 4)), `*`(3, `*`(`^`(z, 3))), `-`(`*`(`+`(`*`(2, `*`(I))), `*`(z)))) end proc (3)


> animate(plot, [[Re(P3(a*cos(t)+a*I*sin(t))),Im(P3(a*cos(t)+a*I*sin(t))),t=0..2*Pi]], a=0..3);


Plot_2d


>
